Videoregistratore Digitale Ibrido 8 canali fino a 8mpx AHD

professionale per la videosorveglianza,

con alta qualità d'immagine 4K HD.

APP: XMEYE

Il DVR è provvisto di mouse e alimentatore

Attenzione: DVR per le nuove telecamere a 4K OPTI 40 e OPTI 40D

•
• Main processor industrial-grade Embedded chipset Hi3521D
• Operation system Embedded LINUX operation system
• System resources
• Multichannel real-time record/ playback, multichannel multi-user on network operation, USB
• backup simultaneously
• Operation system 16bit true color graphic menu operation interface, support mouse to operate
• Image display 1/4/6/8 screen
• Image coding H.264/H.265
• Surveillance quality VGA(Max 1080P)?HDMI(Max 4K)
• Playback definition 5MP/4MP/3MP/1080P/720P/960H/D1 (Can update to 8MP-N)
• Preview
• 8*5MP@12fps(AHD/TVI)/8*5MP-N@20fps(AHD/TVI)/8*4MP@15fps/8*4MPN/
• 8*3MP@18fps(AHD/TVI)/8*3MP-N(AHD)/8*1080P 5-in-1?Can update to 8x8MPN@
• 15fps(AHD/TVI/CVI)?
• Code capacity
• 8*5MP-N@10fps?8*4MP@8fps?8*3MP@10fps?8*3MP-N@18fps?8* 4MP-N@12fps,
• 1080P@15fps?8 * 720P@25fps ?Can update to 8x8MP-N@8fps(AHD/TVI/CVI)?
• Decode capacity
• 4*5MP-N@10fps?4*4MP@6fps?4*3MP@8fps?4*3MP-N@18fps?4*4MP-N/1080P?4*720P
• ?Can update to 4x8MP-N@8fps
• Various mode input arbitrary combination for coaxial and IP hybrid mode; 4*5MP/8* 1080P/16 *960P for all IP mode
• Recognize method Automatic Identification?All AHD?All TVI?All CVI?Customized
• Motion detection 192?16*12? testing areas can be set for each image?can set multi-sensitivity
• Audio compression G.711A
• Two-way intercom Support
• Video mode manual>alarm>dynamic testing>timing
• Local playback
• ?Analog mode? 4
• Record retrieval
• Fast playback, browsing playback, Time retrieval, event retrieval, Timeline retrieval, channel
• retrieval?Intelligent playback
• Intelligent retrieval Use different colors to distinguish if it has record or not at a certain time or certain channel
• Space occupation for each channel
• 3MP/4MP/5MP ~15G/day*channel?4MP-N/3MN/1080P 10~15G/ day*channel?720P ~10G/
• day*channel?960H 6~10G/ day*channel? Audio?691.2M/ day*channel
• Record storage Local hard disk/ network
• Backup mode Network backup?USB HDD?USB record?SATA record
• CMS type IE/Intelligent mobile phone/CMS
• P2P Support (IOS?Android?PC)
• Mobile APP PS6Pro
• Various image surveillance, audio monitor, mobile phone record, snapshot, pan-tilt control,
• remote record playback, equipment list storage
• UTC Support
• PTZ Support
• Dynamic 3D-NR Support Auto/Manual noise parameter setting

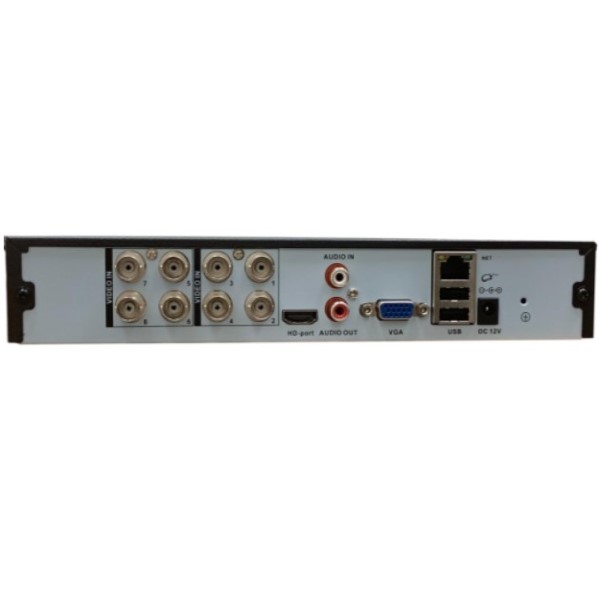

• Video input 8ch BNC
• Video output 1ch VGA, 1ch HDMI
• LOOP output No(can be extended to 1ch CVBS)
• Audio input 2ch RCA
• Audio output 1ch RCA
• Alarm input No(can be extended to 4ch)
• Alarm output No(can be extended to 1ch)
• Network port RJ45 10M/100M Self-adapt to Ethernet interface
• Pan-tilt control 1 RS485; support various pan-tilt protocols
• USB port 2 USB 2.0 port
• HDD port 2 SATA port (support 6T/port above HDD)
• Wifi port 4G?WIFI(Extend via USB)
• Remote control Optional
• Power 12V/3A
• Consumption < 15W?exclusive hard disk?
• Temperature -10 °C~ +55 °C
• Working humidity 10%~90%
• Size(W x H) 203mmx80mm
