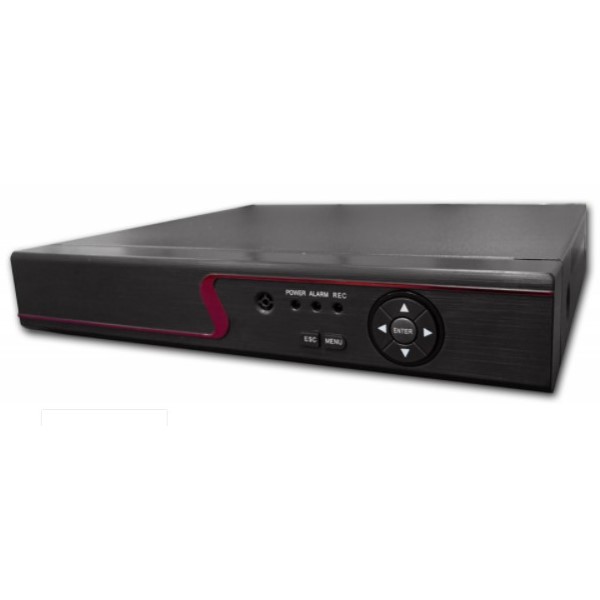

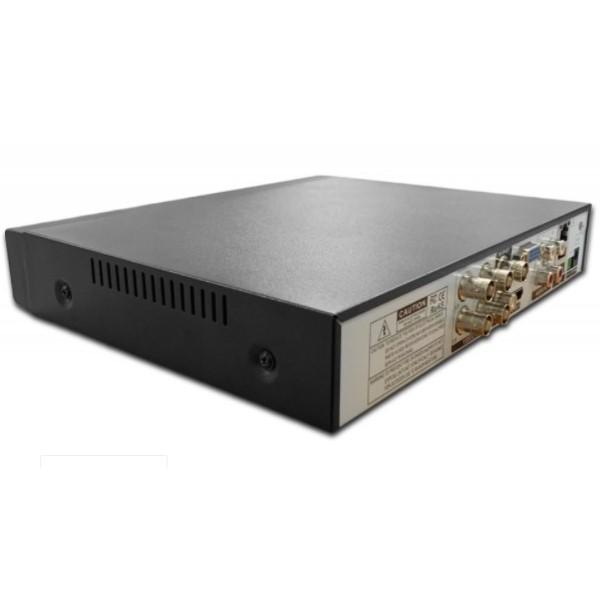

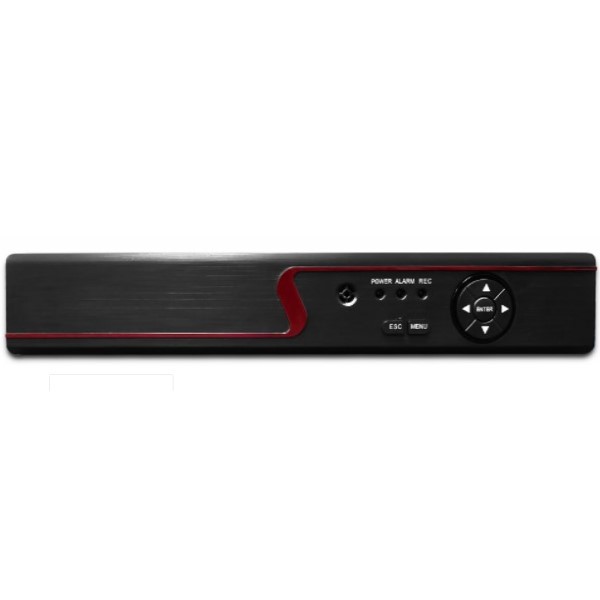

VIDEOREGISTRATORE DIGITALE IBRIDO ULTRA HD 4 CANALI FINO 8 MPX AHD

Videoregistratore Digitale Ibrido 4 canali fino a 8mpx AHD

professionale per la videosorveglianza

con alta qualità d'immagine 4K HD

E' l'inedito DVR 8804k

Il DVR è provvisto di mouse e alimentatore

Attenzione: DVR per le nuove telecamere a 4K OPTI 40 e OPTI 40D

•  Processore Hi3520DV400
• Applicazione da smartphone PS6PRO
• Software con interfaccia ad icone
• Multilingue tra cui Italiano
• Codifica H.264/H.265
• Risoluzione di acquisizione fino a 4k
• Playback finoa 5 Megapixel
• Image coding
• Code capacity
• 4*8MP-N@8fps/4*5MP-N@10fps/4*4MP@8fps/4*3MP@10fps/4*3MP-N@18fps/4*4MP-N/1080P@15fps/4*
• 720P@25fps 5-IN-1
• Decode capacity
• 4*8MP-N@8fps/4*5MP-N@10fps/4*4MP@8fps/4*3MP@10fps/4*3MP-N@18fps/4*4MP-N/1080P@15fps/4*
• 720P@25fps 5-IN-1
• Various mode input Arbitrary combination for coaxial and IP hybrid mode, 4*5MP/8*1080 /16*960P for all IP mode
• Recognize method Automatic Identification?All AHD?All TVI?All CVI?Customized
• Motion detection 192?16*12? testing areas can be set for each image?can set multi-sensitivity
• Audio compression G.711A
• Two-way intercom Support
• Video mode manual>alarm>dynamic testing>timing
• Local playback ?Analog mode? 4
• Record retrieval
• Fast playback, browsing playback, Time retrieval, event retrieval, Timeline retrieval, channel retrieval?Intelligent
• playback
• Intelligent retrieval Use different colors to distinguish if it has record or not at a certain time or certain channel
• Space occupation for each channel
• 3MP/4MP/5MP ~ 15G/ day*channel?4MP-N/3MP-N/1080P 10~15G/ day*channel?720P ~10G/ day*channel?960H
• 6~10G/ day*channel? Audio?691.2M/ day*channel
• Record storage Local hard disk/ network
• Backup mode Network backup?USB HDD?USB record?SATA record
• CMS type IE/Intelligent mobile phone/CMS
• P2P Support (IOS?Android?PC)
• Mobile APP  PS6Pro
• Various image surveillance, audio monitor, mobile phone record, snapshot, pan-tilt control, remote record playback,
• equipment list storage
• UTC Support
• PTZ Support
• Camera software updated Support
• Dynamic 3D-NR Support Auto/Manual noise parameter setting

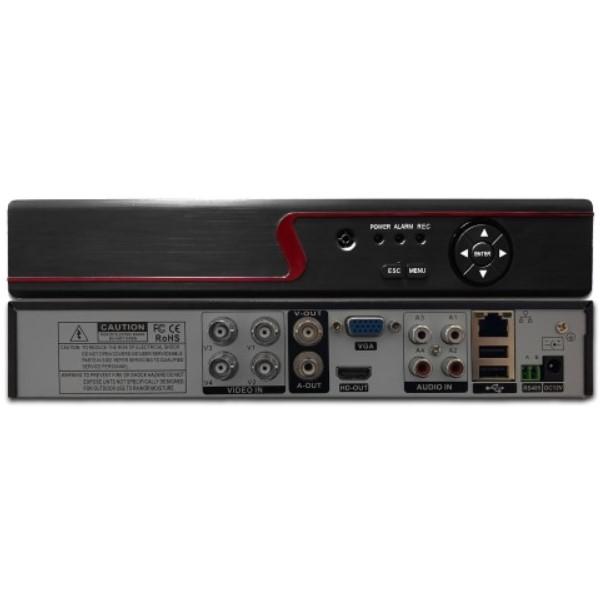

• Video input 4ch BNC
• Video output 1ch VGA?1ch HDMI
• LOOP output 1ch CVBS
• Audio input 4ch RCA
• Audio output 1ch RCA
• Alarm input No(can be extended to 4ch)
• Alarm output No(can be extended to 1ch)
• Network port RJ45 10M/100M Self-adapt to Ethernet interface
• Pan-tilt control 1 RS485; support various pan-tilt protocols
• USB port 2 USB 2.0 port
• HDD port 1 SATA Port?Can support 6T HDD?
• Wifi port 4G?WIFI(Extend via USB)
• Remote control Optional
• Power 12V/3A
• Consumption < 15W?exclusive hard disk?
• Temperature -10 °C~ +55 °C
• Working humidity 10%~90%
• Size(W x H) 160mmx80mm
