Model |

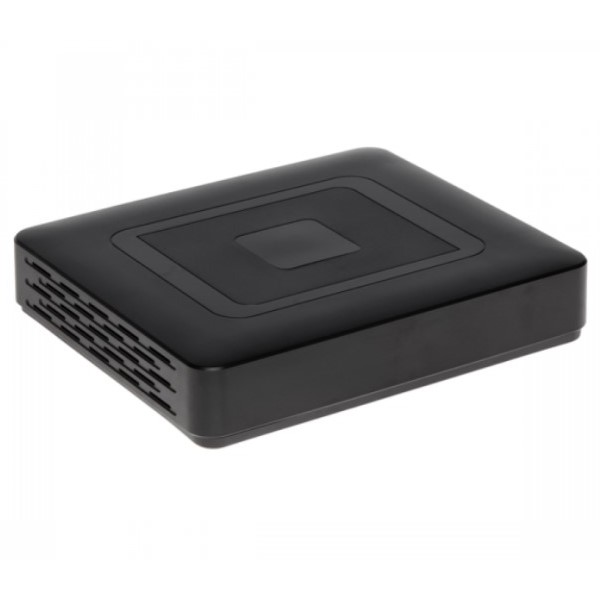

DVR-A1008NR5 |
|
System |
Main processor |
Technical grade embedded microprocessor HI 3520DV400 |
|
Operating system |
Embedded LINUX operating system |
|
|
System resource |
Multi-channel real-time recording synchronously,multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
|
Interface |
Operation interface |
16bit real color GUI interface support mouse operation |
|
Display screen |
1/4/8 screen (take analog channel as an example,other is base on the selected channel mode) |
|
|
Video |
Video standard |
PAL/NTSC |
|
Image encode |
H.265 |
|
|
Monitor quality |
VGA & HDMI max 1080P |
|
|
Preview capability |
8*1080N?6 in 1??4*1080P(6 in 1) |
|
|
Encode capability |
4*1080P@18fps(6 in 1)?8*1080N@15fps(6 in 1)? |
|
|
Decode capability |
4*1080P@18fps(6 in 1)?8*1080N@15fps(6 in 1)? |
|
|
Multi-mode video input |
AHD/XVI/TVI/CVI/ANALOG?8*1080N(15FPS/CH) / 4*1080P(18FPS/CH) HVR: 2*1080P?5IN1?+2*1080P?IP?Support Digital to analog conversion NVR: 16*1080P; 8*5M |
|
|
Motion detection |
Each channel can set 192?16*12?detection area;can set multi-level of flexibility (for local analog channel only) |
|
|
Audio |
Audio compression |
G711A |
|
Bidirectional talk |
Support |
|
|
Record and playback |
Record mode |
Manual>alarm>motion detection>timing |
|
Local playback |
1-8ch playback synchronously (take local analog input for example, other is depended on the selected channel mode) |
|
|
Video search |
Time?date?event?channel search |
|
|
Storage and back up |
Video storage |
Local HDD ?Network |
|
Back up mode |
Network backup?USB portable HDD?USB imprint?SATA imprint |
|
Interface |
Video input |
8CH BNC(1.0Vp-p,75Ω) |
|
Video output |
1CH VGA?1CH HDMI |
|
|
Audio input/output |
