Videoregistratore Digitale Ibrido 4 canali fino a 4 MPX

professionale per la videosorveglianza,

DVR STAR 4

Il DVR è provvisto di mouse e alimentatore

• Prcessore Hi3520DV400 fino a 4 Megapixel - N
• Sistema operativo Linux
• Modalità multicanale in tempo reale, riproduzione, rete e salvataggio dati
• Sistema operativo a 16bit con colori reali e menu ad icone con supporto al mouse
• Visualizzazione a 4 canali
• H264 e H265
• Uscite VGA (1080p) e HDMI (4k)
• Riproduzione 4MP/3MP/1080P/720P/960H/D1
• Riconoscimento automatico: AHD, CVI, TVI, CVBS
• Rilevazione di movimento basata sul pixel a programmazione oraria o manuale
• Video mode manual>alarm>dynamic testing>timing
• Local playback ?Analog mode? 4
• Record retrieval
• Fast playback, browsing playback, Time retrieval, event retrieval, Timeline retrieval, channel retrieval?Intelligent
• playback
• Intelligent retrieval Use different colors to distinguish if it has record or not at a certain time or certain channel
• Space occupation for each channel
• 3MP/4MP/5MP ~ 15G/ day*channel?4MP-N/3MP-N/1080P 10~15G/ day*channel?720P ~10G/ day*channel?960H
• 6~10G/ day*channel? Audio?691.2M/ day*channel
• Record storage Local hard disk/ network
• Backup mode Network backup?USB HDD?USB record?SATA record
• CMS type IE/Intelligent mobile phone/CMS
• P2P Support (IOS?Android?PC)
• Mobile APP function
• Various image surveillance, audio monitor, mobile phone record, snapshot, pan-tilt control, remote record playback,
• equipment list storage
• UTC Support
• PTZ Support
• Camera software updated Support
• Dynamic 3D-NR Support Auto/Manual noise parameter setting

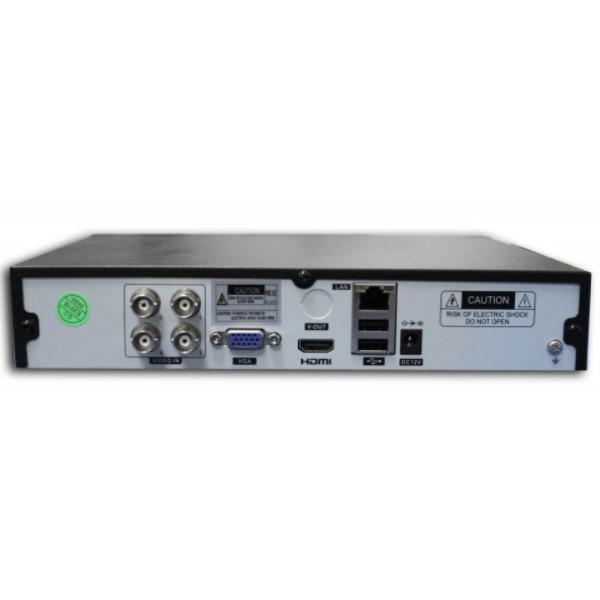

• Video input 4ch BNC
• Video output 1ch VGA?1ch HDMI
• Network port RJ45 10M/100M Self-adapt to Ethernet interface
• Pan-tilt control 1 RS485; support various pan-tilt protocols
• USB port 2 USB 2.0 port
• HDD port 1 SATA Port?Can support 6T HDD?
• Wifi port 4G?WIFI(Extend via USB)
• Remote control Optional
• Power 12V/3A
• Consumption < 15W?exclusive hard disk?
• Temperature -10 °C~ +55 °C
• Working humidity 10%~90%
• Dimensioni cm 26*21*5,5
