ModelNo.
MEGA 21 POE PTZ
CameraType
IP Camera
System
Embedded RTOS design
Camera
Pixels Effettivi
2.0Mega Pixels
Main stream:1920*1080
Substream:704*576
Frames Rates
PAL:25fps
NTSC:30fps
Sensore Immagine
1/2.8"SONY Exmor IMX307 CMOSSensor
2.48megapixel resolution (2000H*1241V)
DSP
Dualcore 32-bitDSP
3516C
Min. Illumination
Color 0.01Lux/F1.2
B/W 0.001Lux/F1.2
Adjust Parameters
DWDR, BLC, DNR,AE,AGC, D&N,Mirror, Flip,etc.
Video
Compressione
Stream
support dualstream,AVI format
Bit Rate
support 0.1 M ~ 8 Mpbs bitrate adjustable
Frame Rates
support 1~30 fps adjust
Audio
Ingressi e uscita
Audio non presente
G.711compression,support two-wayaudio intercom,supportaudio andvideosynchronized outPuo'
PTZ
Pan/Tilt Range
Pan:0°~260°;Tilt:-5°~60°
Preset Point
256
Controllo manuale
Pan:0.5°~12°/s;Tilt:0.51°~12°/s
PresetTour
8lines
Pattern Scan
4 lines
Alarm
Tipi
Motion Detection, Video Blind, Video Loss
Network
WEB Browser
Support WEB (IE 32 bit)
Smart Phone
mobile remoteMonitoring (iPhone,Android,Windows Mobile, BlackBerry, Symbian)
CMS Software
Uniform CMS Software(multiple devices management system)
Cloud P2P
www.xmeye.net,MYEYE platformand other program,OfferSDK
1 * RJ45,10/100M, Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
ONVIF
Support (ONVIF2.0)
POE
Support (optional)
WIFI
N/A
Filtro IR cut
Set of double lightswitch IR-CUT filter
Lenti a bordo
Motorize ZoomAuto Focus Lens 5-50 (10x)
Illuminatori infrarossi
4 pcsArray IR Leds F12
Infrarossi
850 nm
Distanza illuminazione
More than 50M
Connettore I/O

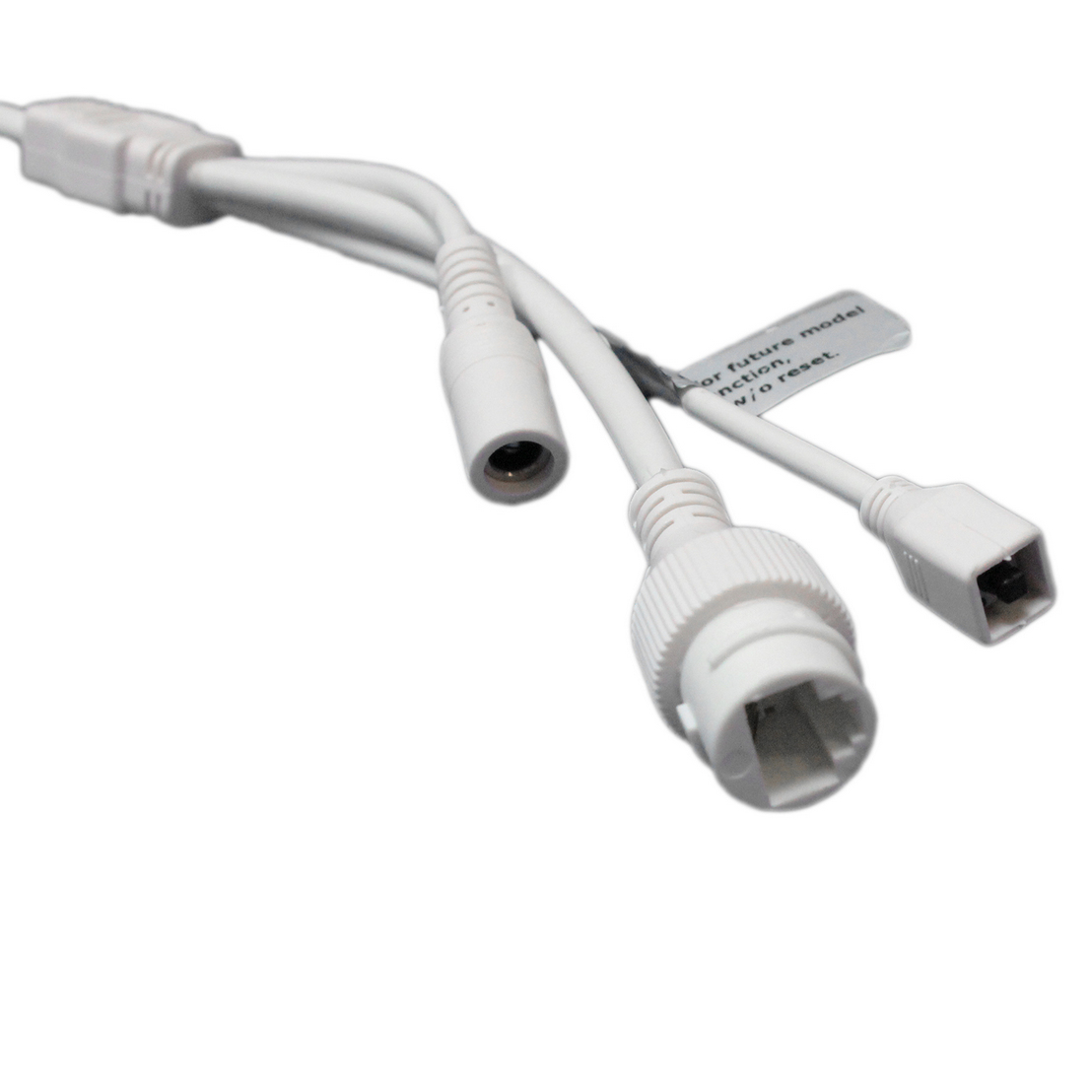

1*DC Connector,1*RJ45(10/100M Network),1*BNCconnector (CVBS,Option)
Voltaggio operativo
DC12V/PoE (802.3af/820.3at)
Power
IROn:1000mAmax., IROff:Less than400mA
Working Enviroment
-10°C~+60°C,10%~90%
Dimensioni
200*150*85mm compresa staffa
Peso
1.4kg
