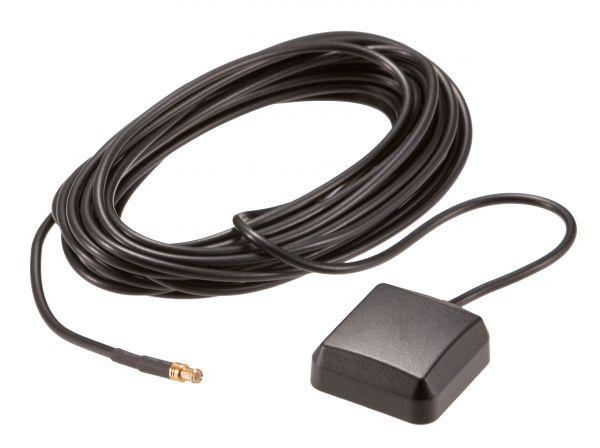

ANTENNA GPS ESTERNA TRACKER LOCALIZZATORE HAICOM HI 602 602X

Antenna gps esterna per haicom hi602 E 602X per migliorare la ricezione dei satelliti.

Per migliorare la ricezione gps del localizzatore soprattutto quando installato in parti nascoste o stabilmente su veicoli.

Lunghezza cavo mt 5.

Caratteristiche:

 Amplifier Module:

• Amplifier Gain without cable: 35 dB
• Typical Noise Figure: 2.0dB Typical
• Output VSWR 2.0 Max.
• DC Voltage: DC 4.0V to 6.0V
• DC Current: 22 ±5mA

Antenna

• HFrequency : 1575.42±3 MHz
• VSWR : 1.5Max.
• Bandwidth : 20 MHz Min. at -10 dB
• Axial Ratio:3 dB Typical
• Impedance : 50 Ω
• Peak Gain: 4 dBic Min. at 0° (7x7 cm ground plane)
• Gain Coverage:? -4dBic at –90°~90°(over 75% volume)
• Power Handling : 1 watt
• Polarization: RHCP

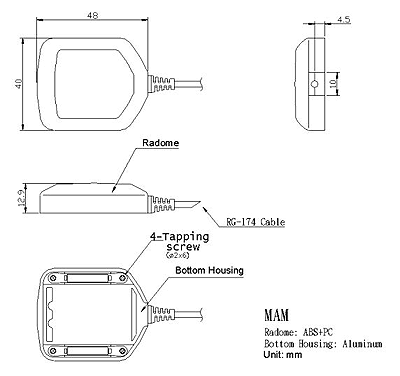

Mechanical

• Weight : 42 grams Max.
• Size : 48x40x13 mm
• Mounting : Magnetic base
• Cable:RG174/RG316
• Housing Color: Black

Environmental

• Working Temperature:-40°C< T<+85°C
• Storage Temperature:-50°C< T<+85°C
• Vibration : Sine Sweep,1G(O-P),10-150-10Hz each axis
• Humidity : 95%~100%RH
• Weatherproof:IP56(Dustproof and Waterproof)
