ModelNo.
|
MEGA 21 POE PTZ
|
|
CameraType
|
IP Camera
|
|
System
|
Embedded RTOS design
|
|
Camera
|
Pixels Effettivi
|
2.0Mega Pixels
|
|
Main stream:1920*1080
|
|
Substream:704*576
|
|
Frames Rates
|
PAL:25fps
|
|
NTSC:30fps
|
|
Sensore Immagine
|
1/2.8"SONY Exmor IMX307 CMOSSensor
|
|
2.48megapixel resolution (2000H*1241V)
|
|
DSP
|
Dualcore 32-bitDSP
|
|
3516C
|
|
Min. Illumination
|
Color 0.01Lux/F1.2
|
|
B/W 0.001Lux/F1.2
|
|
Adjust Parameters
|
DWDR, BLC, DNR,AE,AGC, D&N,Mirror, Flip,etc.
|
|
Video
|
Compressione
|
- H264Main profile
|
|
Stream
|
support dualstream,AVI format
|
|
Bit Rate
|
support 0.1 M ~ 8 Mpbs bitrate adjustable
|
|
Frame Rates
|
support 1~30 fps adjust
|
|
Audio
|
Ingressi e uscita
|
Audio non presente
|
|
Compressione
|
G.711compression,support two-wayaudio intercom,supportaudio andvideosynchronized outPuo'
|
|
PTZ
|
Pan/Tilt Range
|
Pan:0°~260°;Tilt:-5°~60°
|
|
Preset Point
|
256
|
|
Controllo manuale
|
Pan:0.5°~12°/s;Tilt:0.51°~12°/s
|
|
PresetTour
|
8lines
|
|
Pattern Scan
|
4 lines
|
|
Alarm
|
Tipi
|
Motion Detection, Video Blind, Video Loss
|
|
Network
|
WEB Browser
|
Support WEB (IE 32 bit)
|
|
Smart Phone
|
mobile remoteMonitoring (iPhone,Android,Windows Mobile, BlackBerry, Symbian)
|
|
CMS Software
|
Uniform CMS Software(multiple devices management system)
|
|
Cloud P2P
|
www.xmeye.net,MYEYE platformand other program,OfferSDK
|
|
Network
|
1 * RJ45,10/100M, Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
|
|
ONVIF
|
Support (ONVIF2.0)
|
|
POE
|
Support (optional)
|
|
WIFI
|
N/A
|
|
|
Filtro IR cut
|
Set of double lightswitch IR-CUT filter
|
|
Lenti a bordo
|
Motorize ZoomAuto Focus Lens 5-50 (10x)
|
|
Illuminatori infrarossi
|
4 pcsArray IR Leds F12
|
|
Infrarossi
|
850 nm
|
|
Distanza illuminazione
|
More than 50M
|
|
|
|
|
Connettore I/O
|

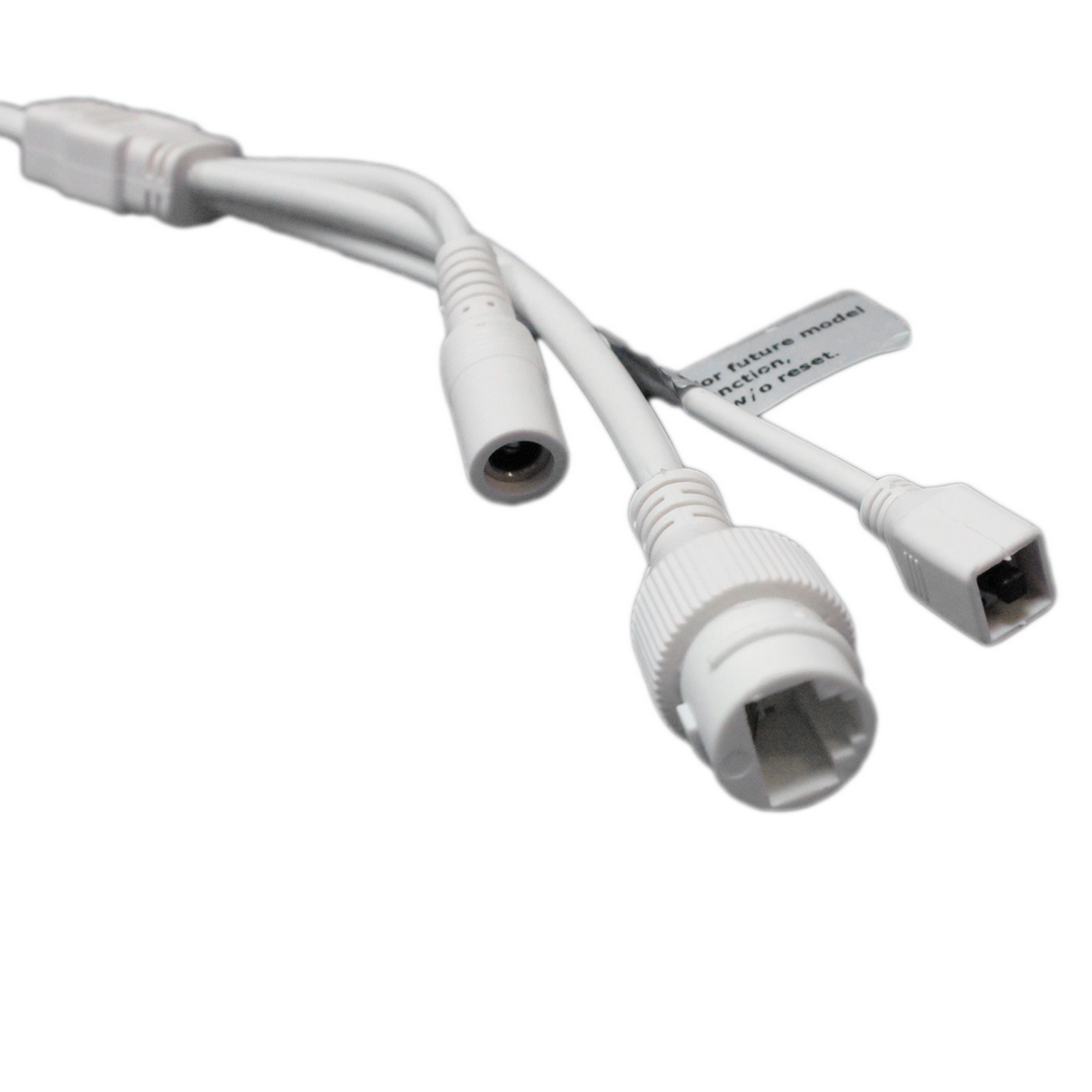

1*DC Connector,1*RJ45(10/100M Network),1*BNCconnector (CVBS,Option)
|
|
Voltaggio operativo
|
DC12V/PoE (802.3af/820.3at)
|
|
Power
|
IROn:1000mAmax., IROff:Less than400mA
|
|
Working Enviroment
|
-10°C~+60°C,10%~90%
|
|
Dimensioni
|
200*150*85mm compresa staffa
|
|
Peso
|
1.4kg
|
